12V



Технические

 данные

 Тип (Ah) Размеры (мм ) Вес

Акт.

внутр.

сопр.
(L) длина (W) ширина (Н) высота (кг) (mohm)

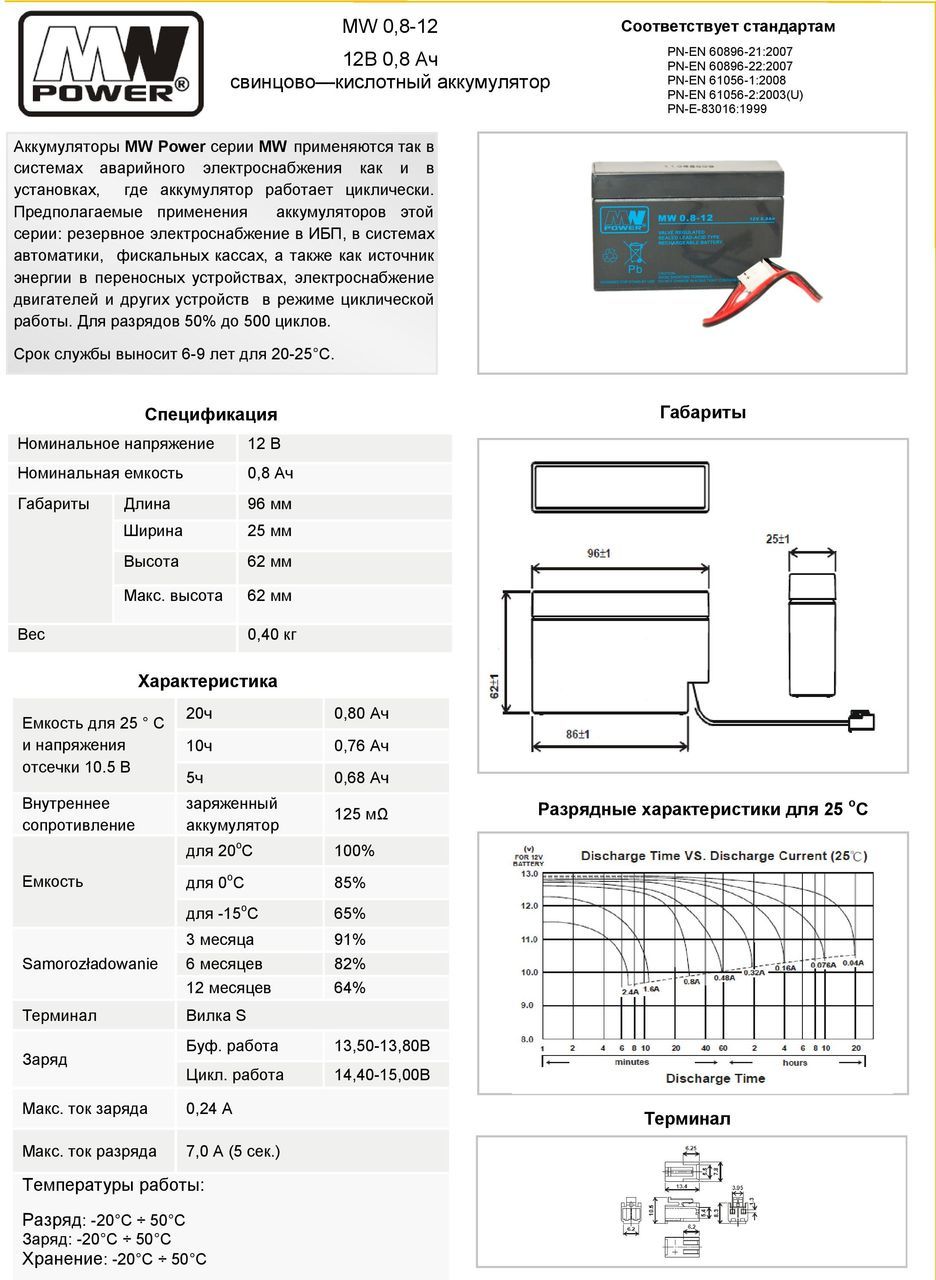

 1.mw_08-12ros0-1-page-001 0,8-12 0,8 96,0 25,0 62,0 0,34 100,0

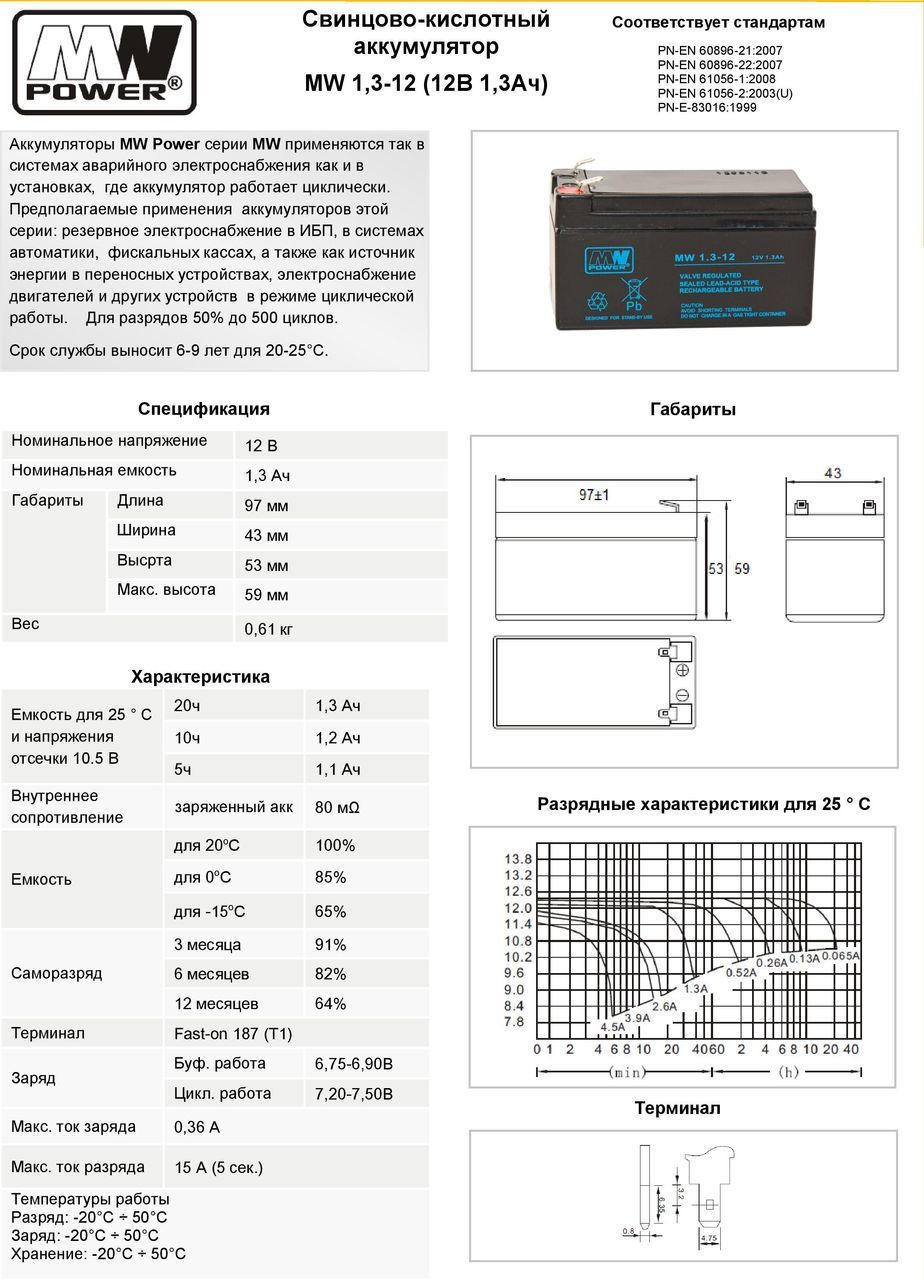

 2.mw_13-12ros-page-001 1,3-12 1,3 97,0 47,0 53,0 0,61 80,0

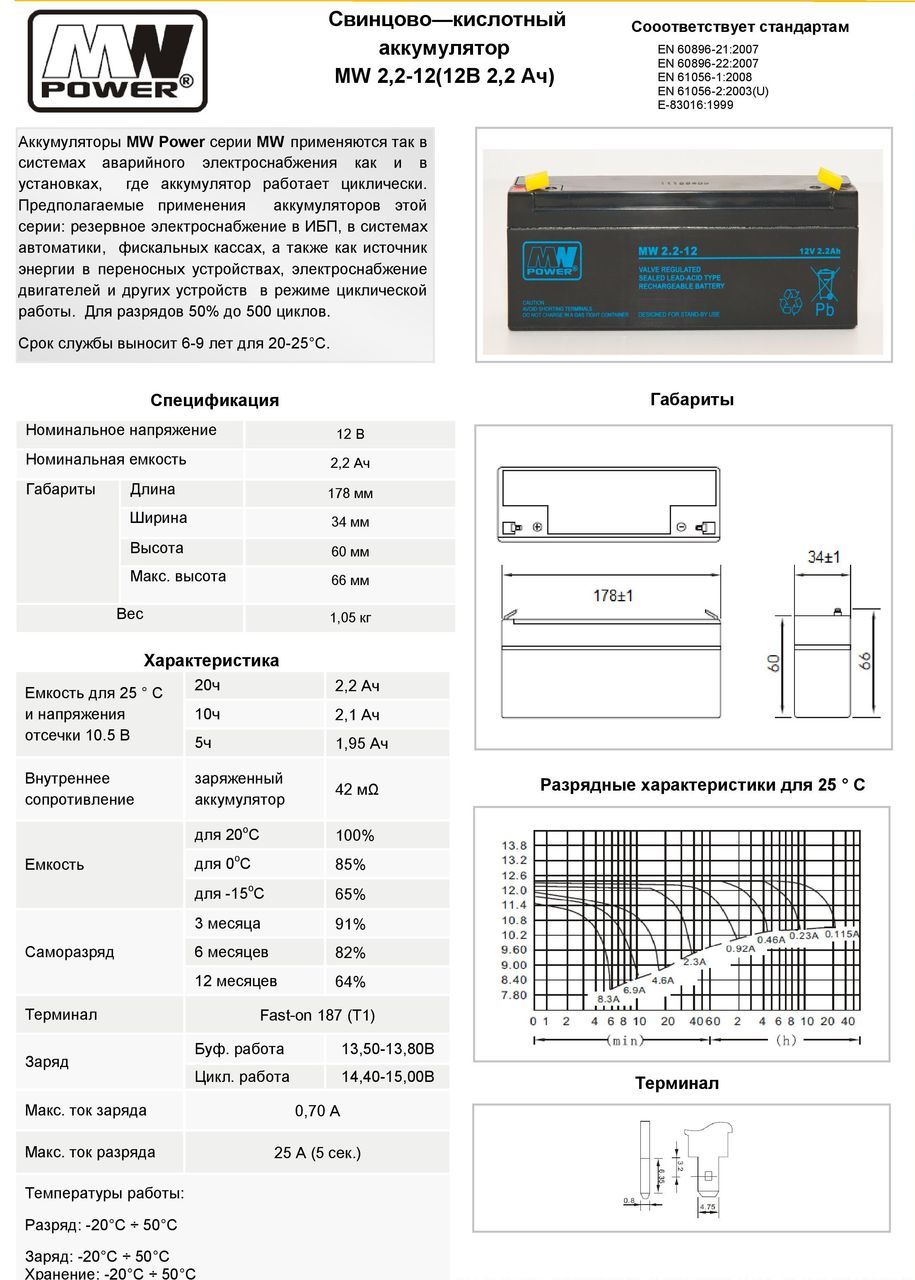

 3.mw22-12ros-page-001 2,2-12 2,2 178,0 34,0 60,0 1,05 40,0

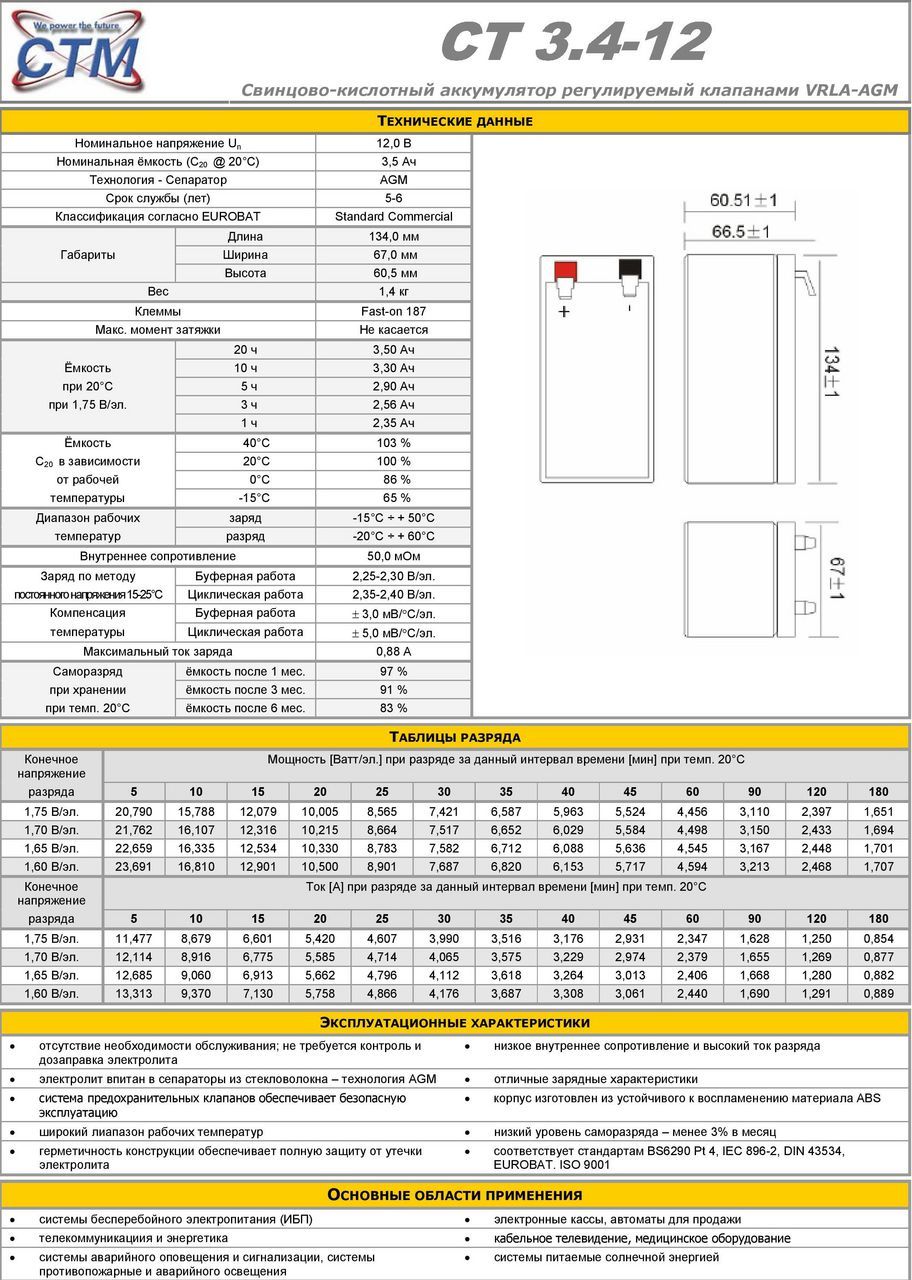

 4.3.4-12 3,4-12 3,5 134,0 67,0 60,0 1,40 38,0

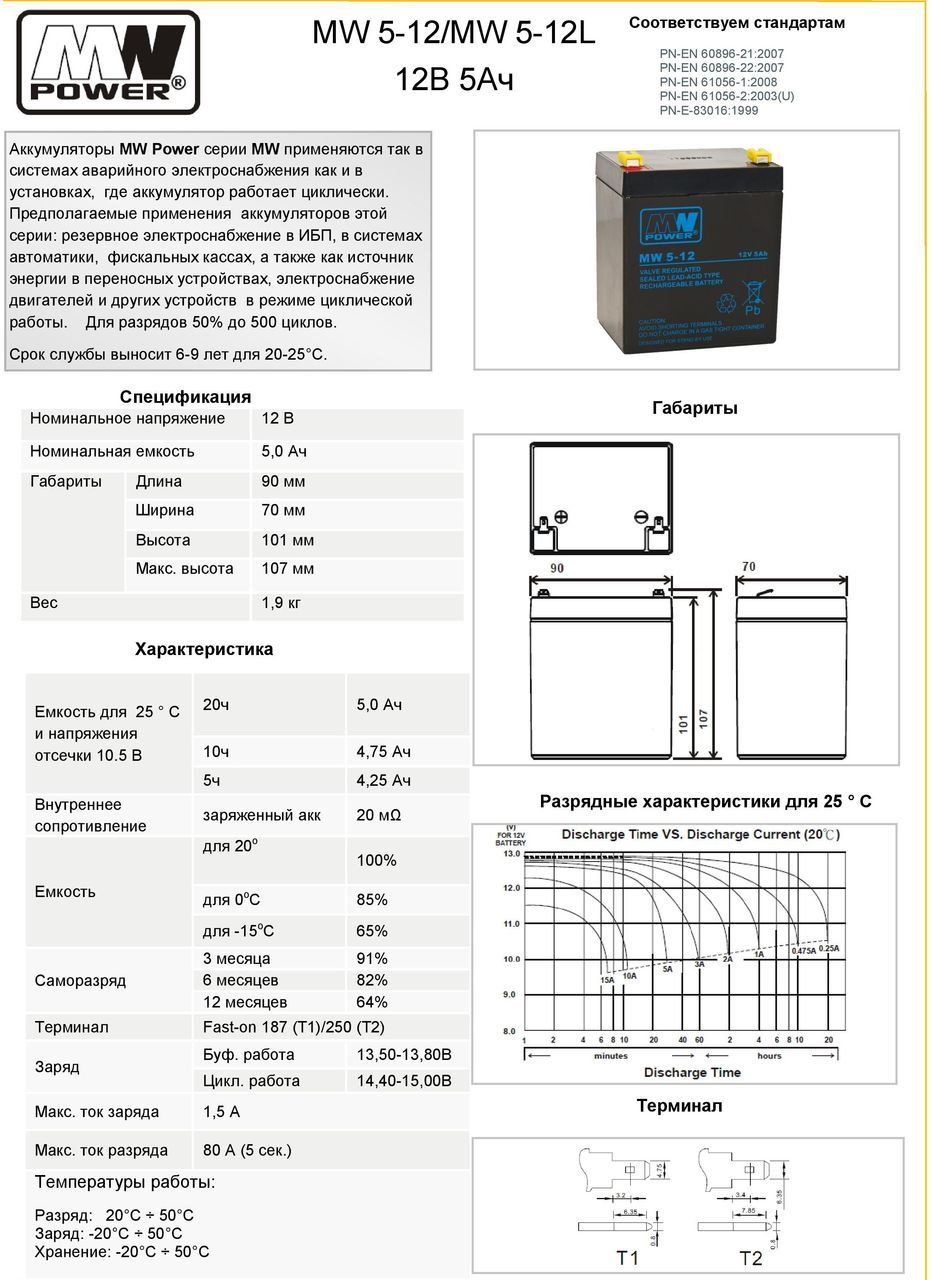

 5.mw_5-12mw_5-12lros-page-001 5-12 5,4 90,0 70,0 101,0 1,70 23,0

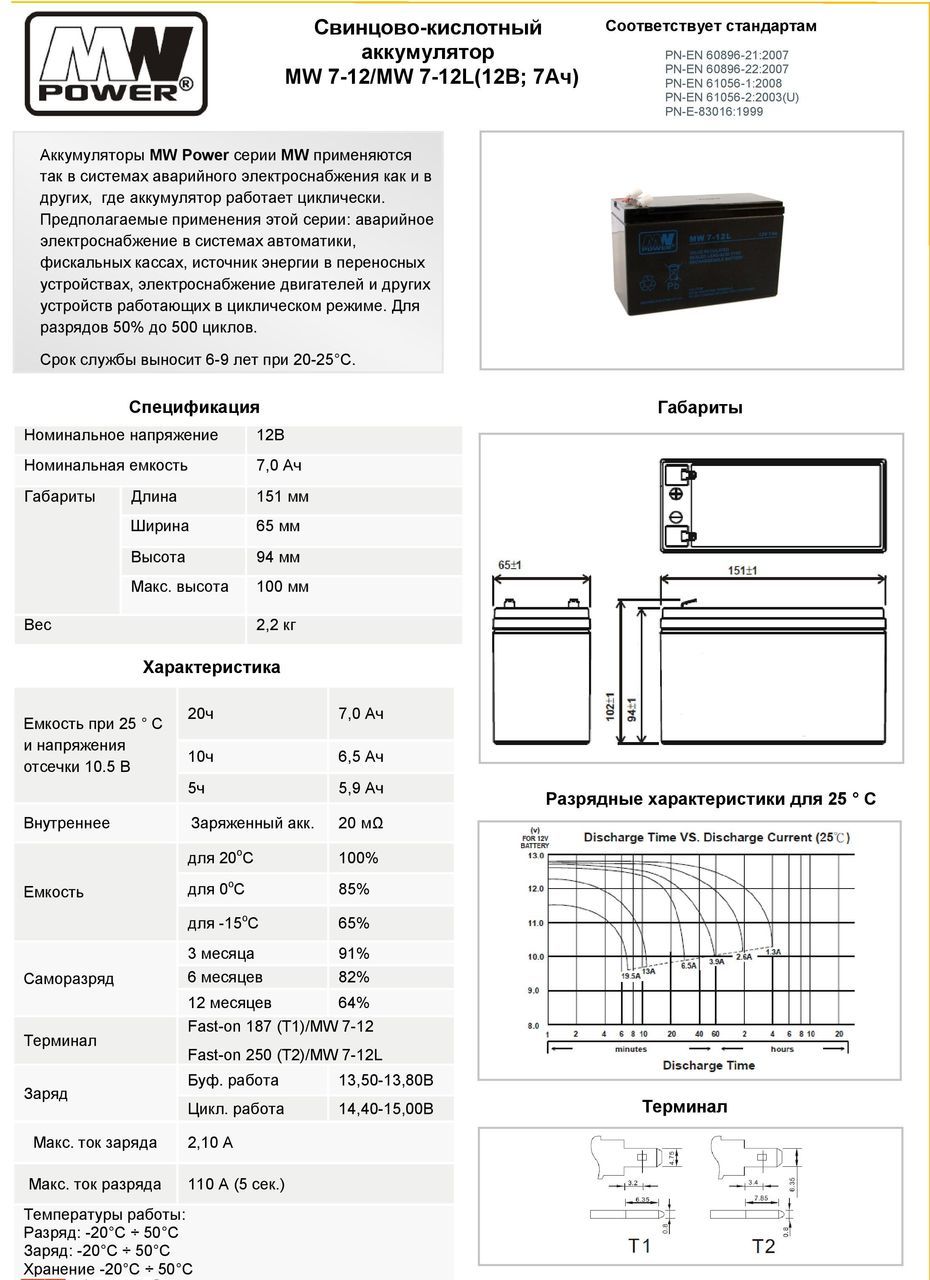

 6.mw_7-12mw_7-12lros-page-001 7-12 7,0 151,0 65,0 94,0 2,54 23,0

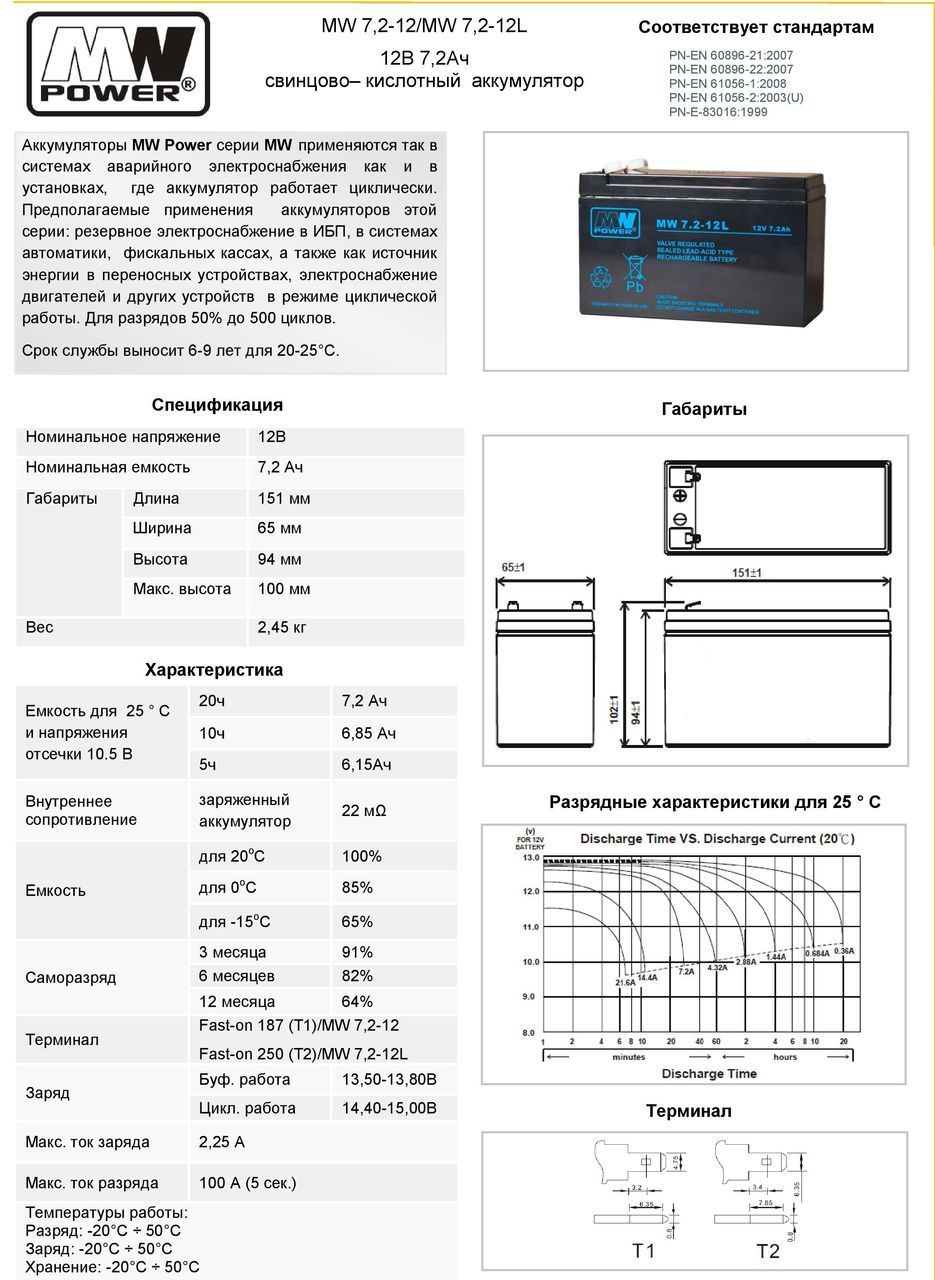

 7.mw_72-12mw_72-12lros01-page-001 7,2-12 7,2 151,0 65,0 94,0 2,63 22,0

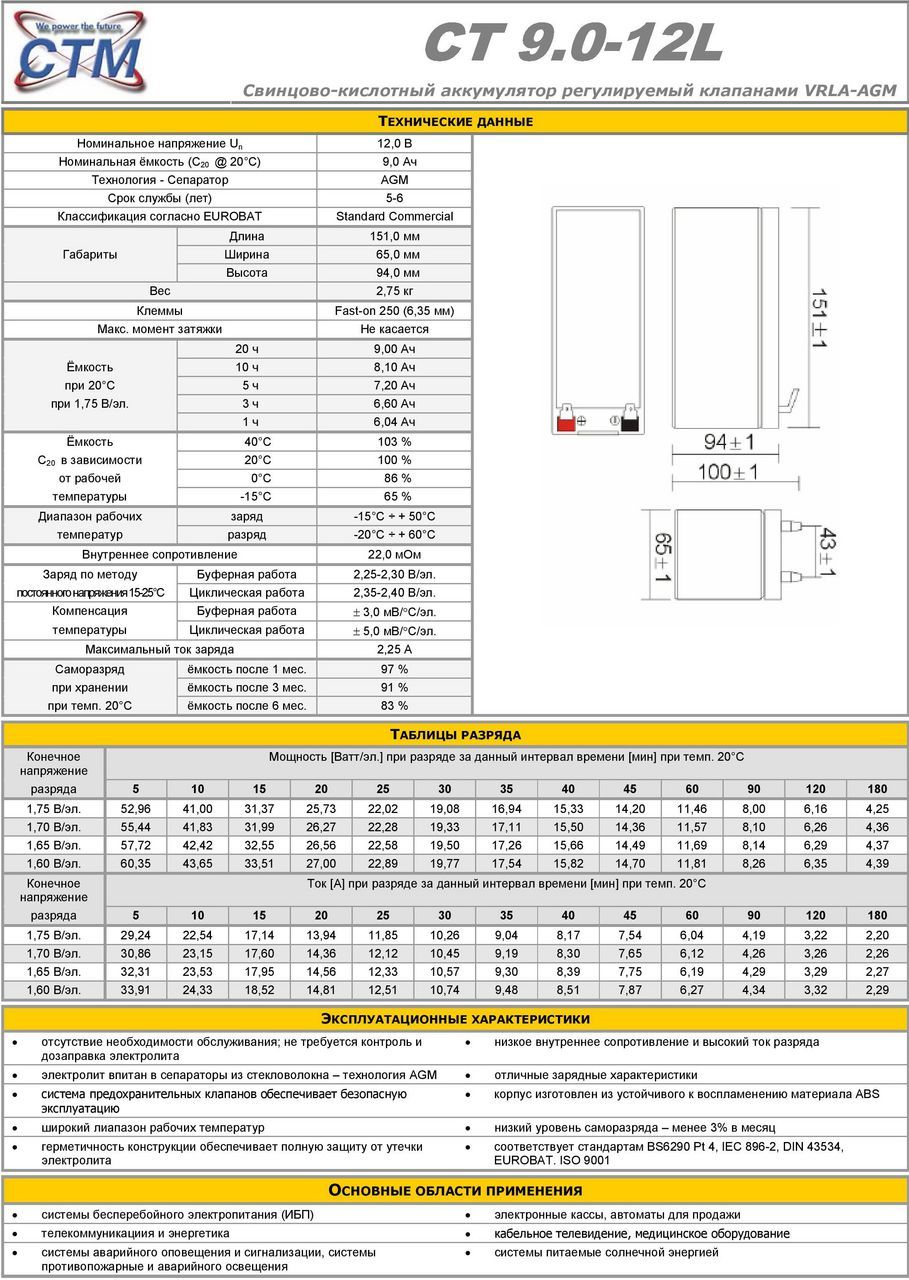

 8...9.0-12 9-12 9,0 151,0 65,0 94,0 2,75 16,0

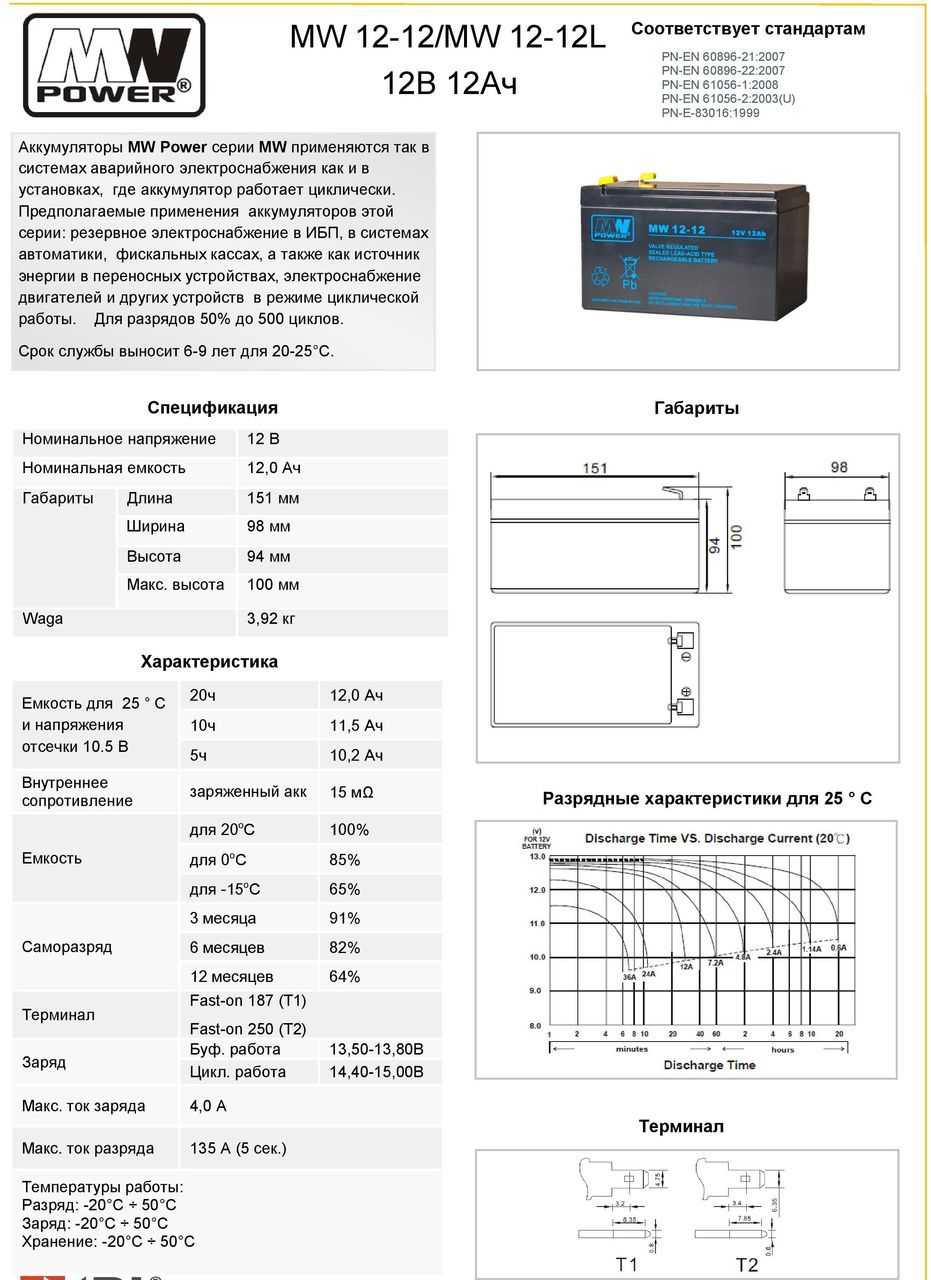

 9.mw_12-12mw_12-12lros-page-001 12-12 12,0 151,0 98,0 95,0 4,05 13,0

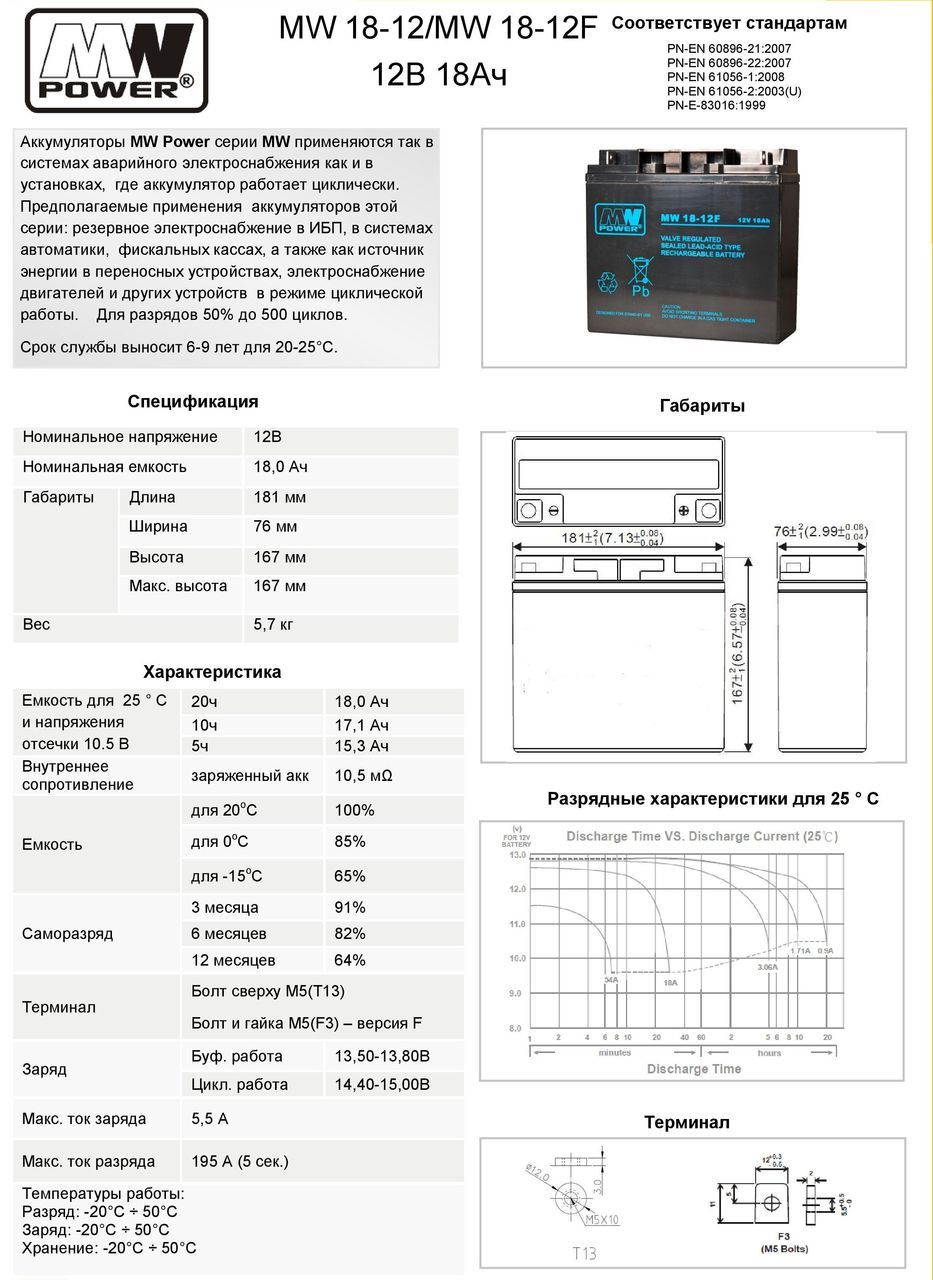

 10.mw_18-12mw-18-12fros-page-001 18-12 18,0 181,0 77,0 167,0 5,70 8,0

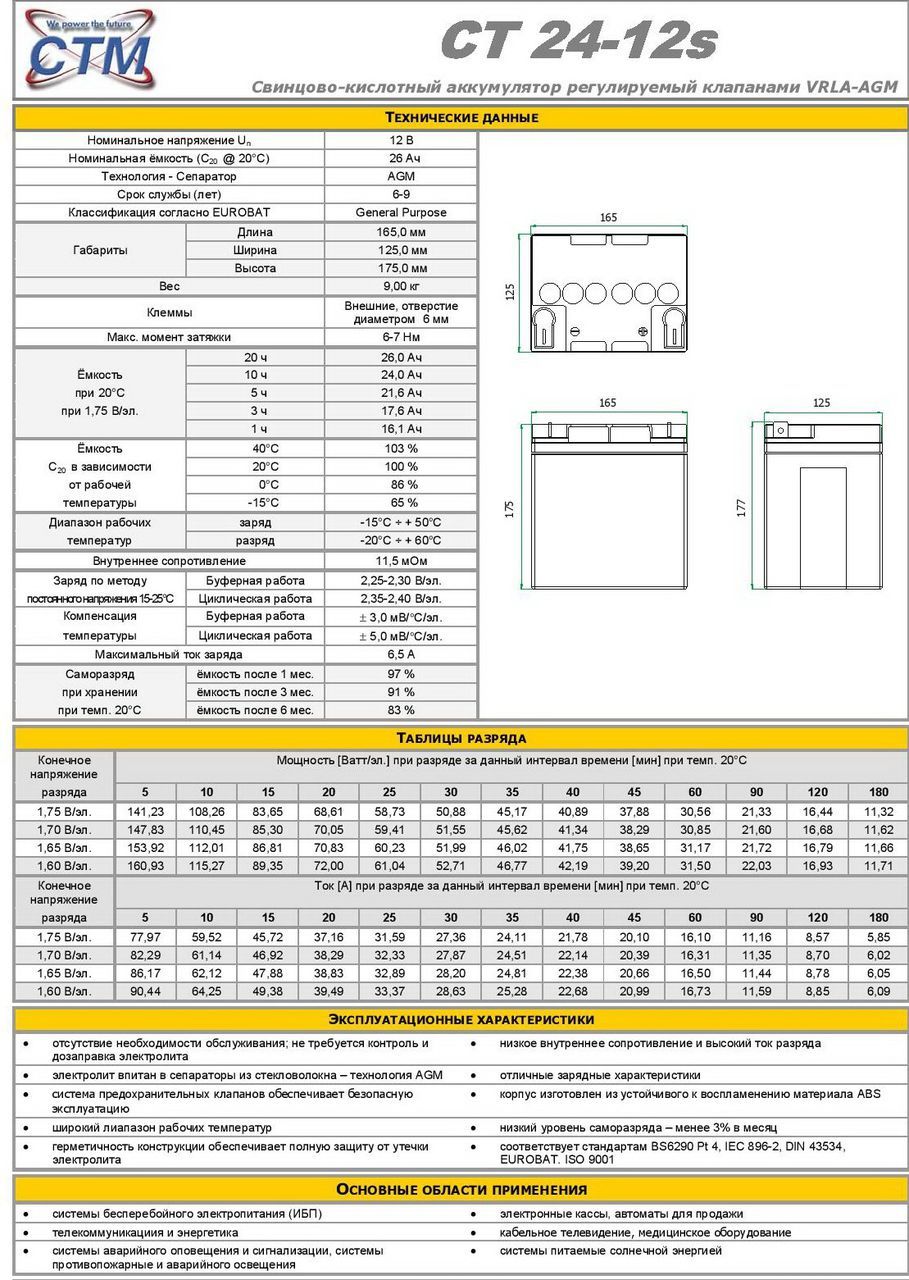

 11.24-12s 24-12 26,0 177,0 166,5 125,0 8,20 8,0

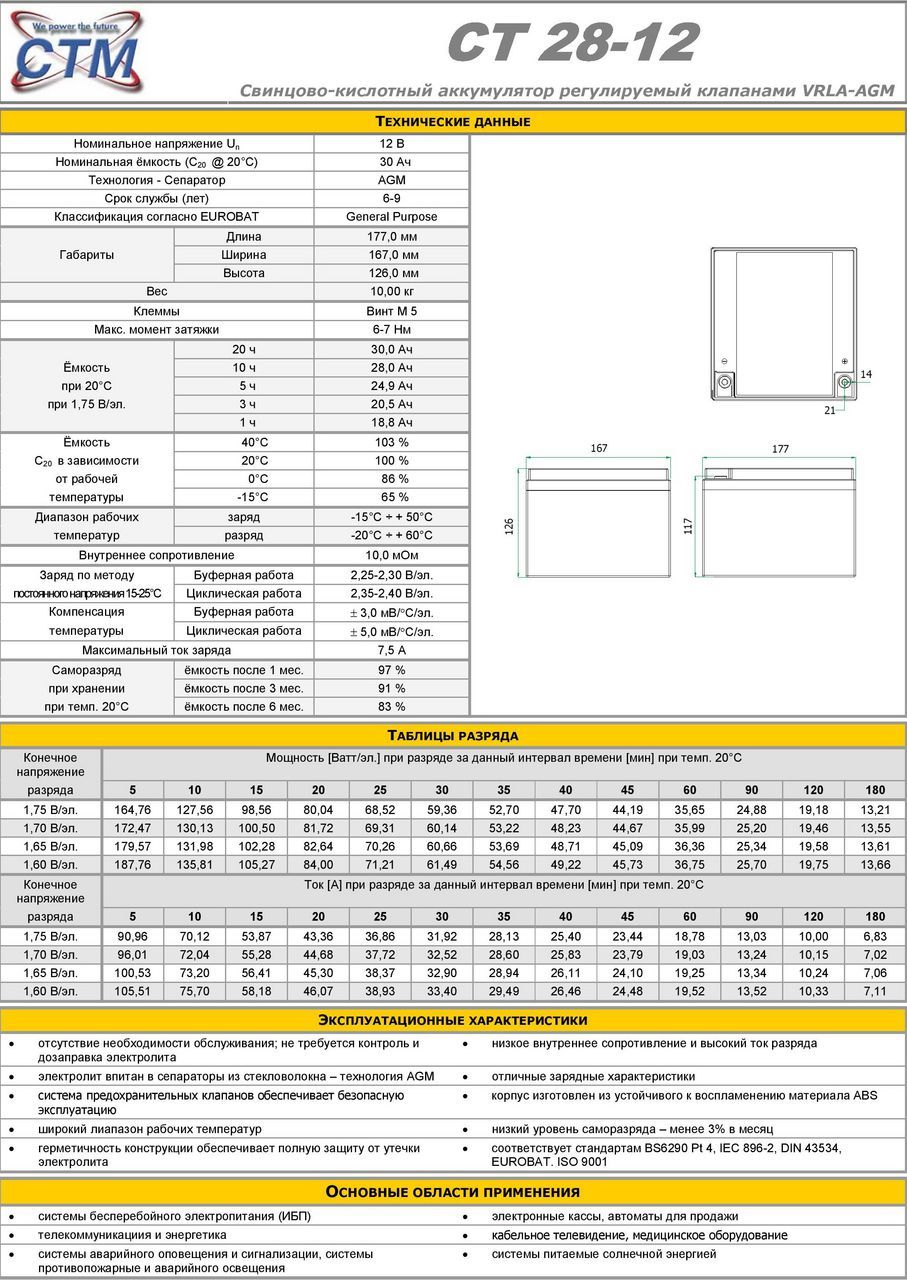

 12.28-12 28-12 30,0 177,0 166,0 125,0 10,00 8,0

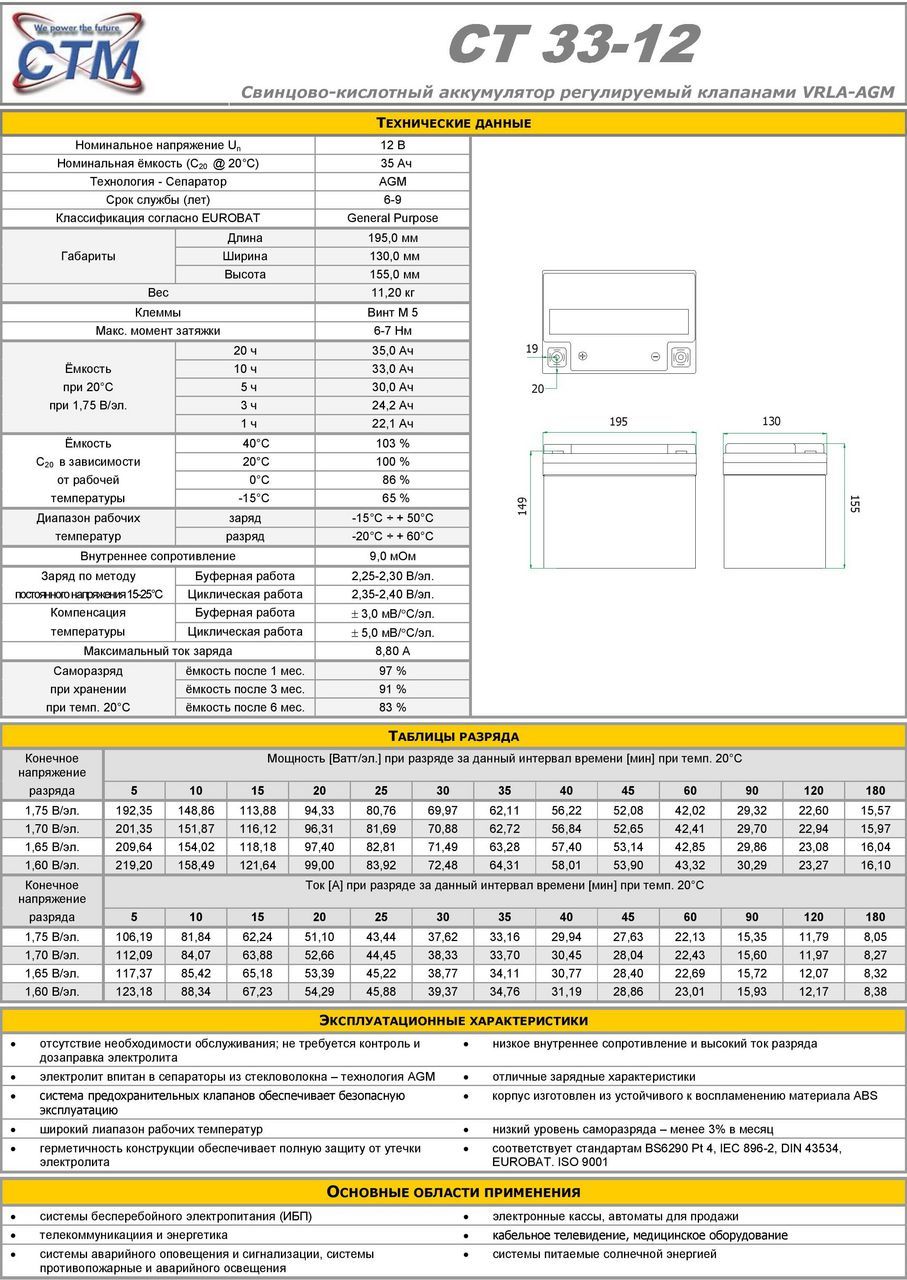

 13.33-12 33-12 35,0 195,0 130,0 166,5 11,20 7,0

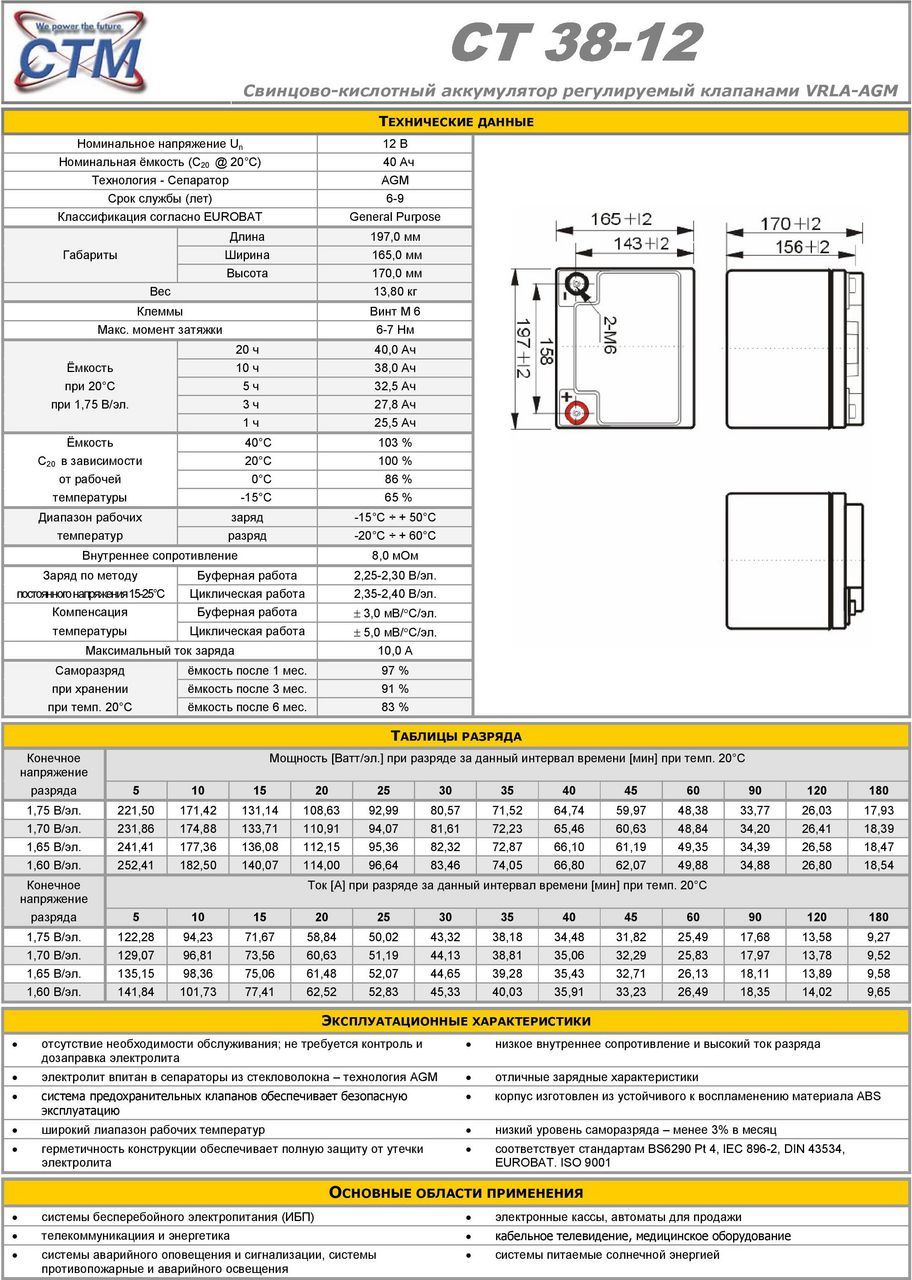

14.38-12  38-12 40,0 197,0 165,0 170,0 13,80 7,0

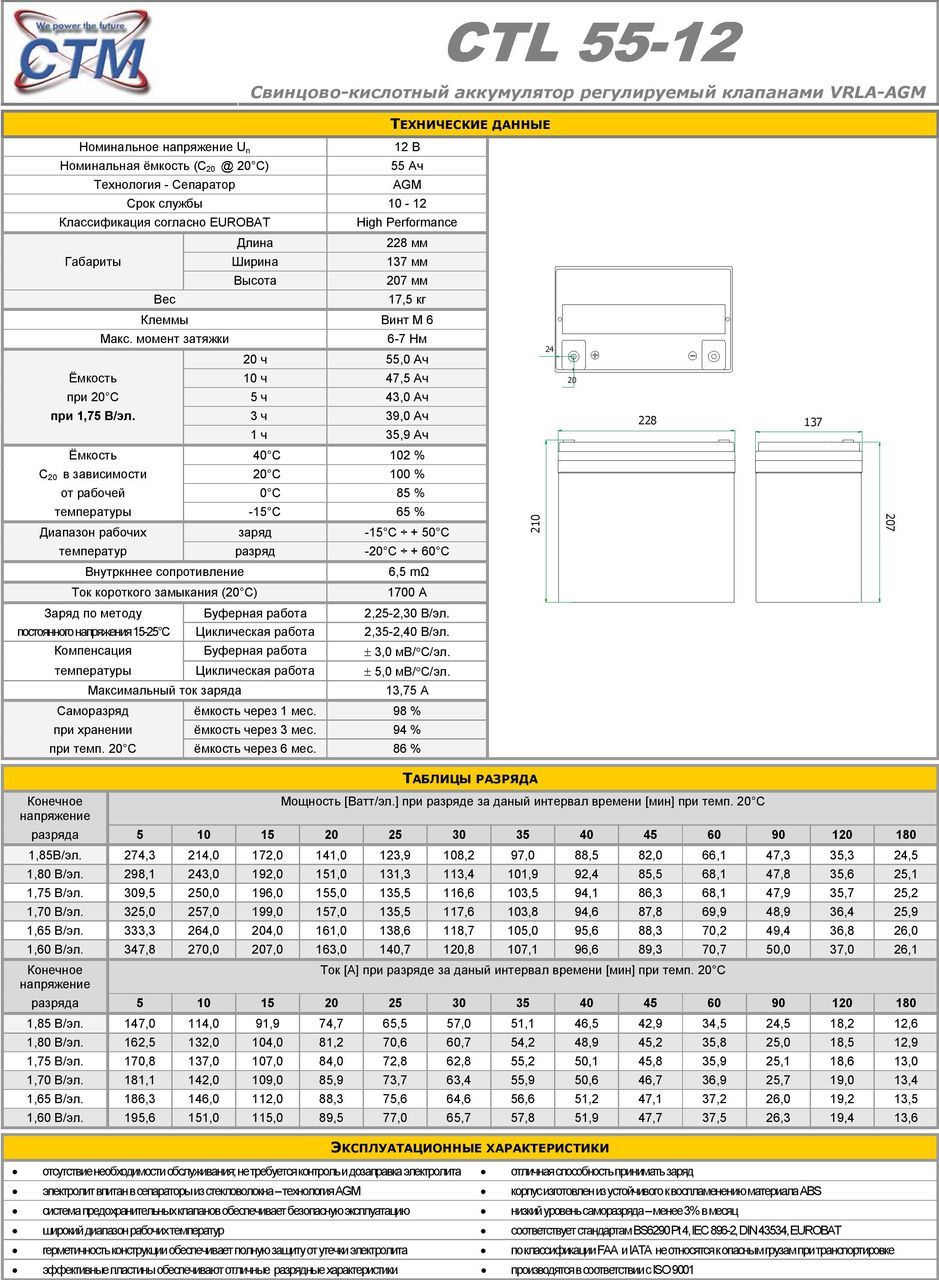

 15.ctl55-12-page-001 55-12 55,0 228,0 137,0 210,0 19,00 6,0

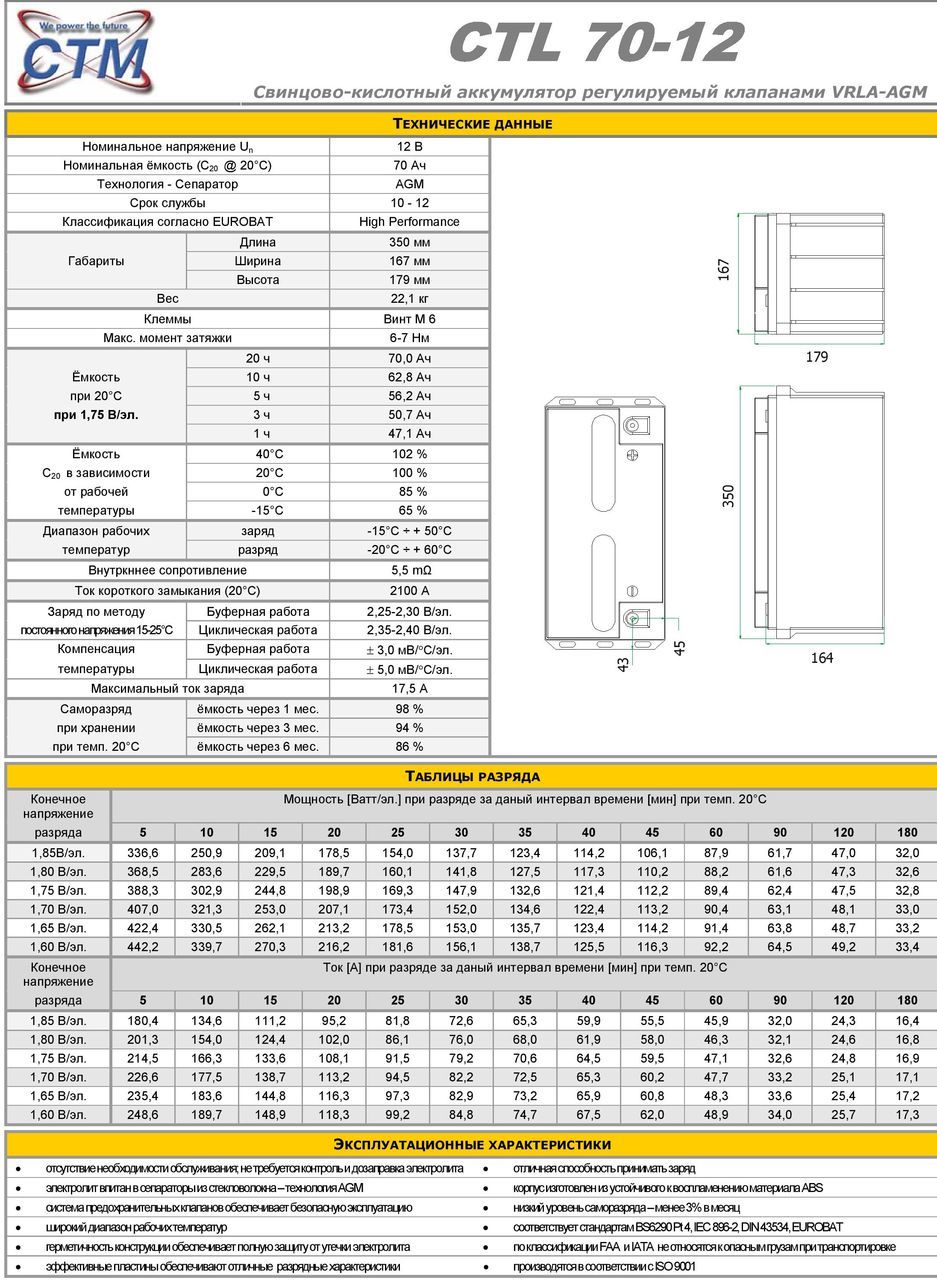

 16.ctl70-12-page-001 70-12 70,0 350,0 167,0 179,0 22,10 5,7

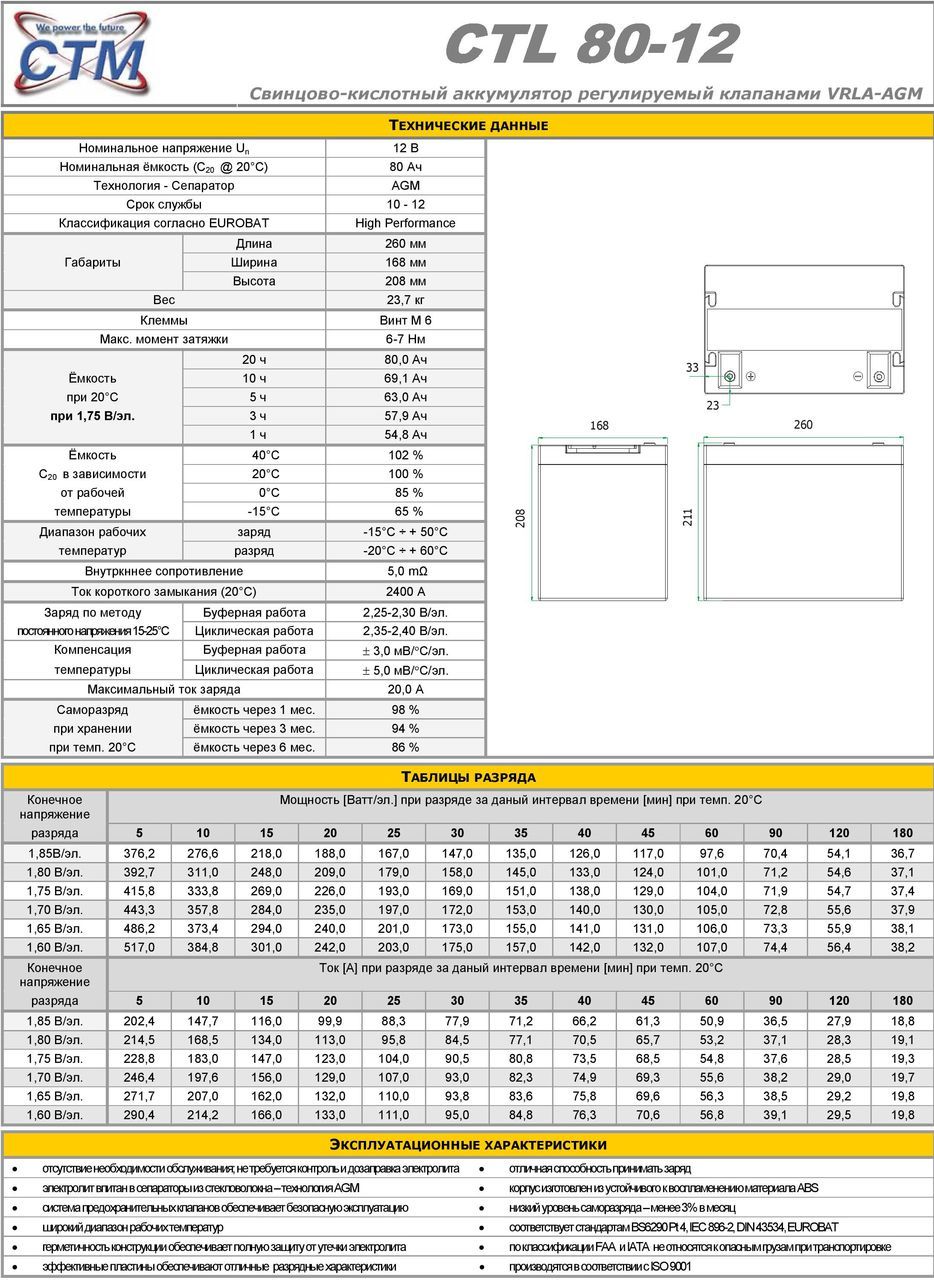

 17.ctl80-12-page-001 80-12 80,0 260,0 168,0 210,0 25,00 5,0

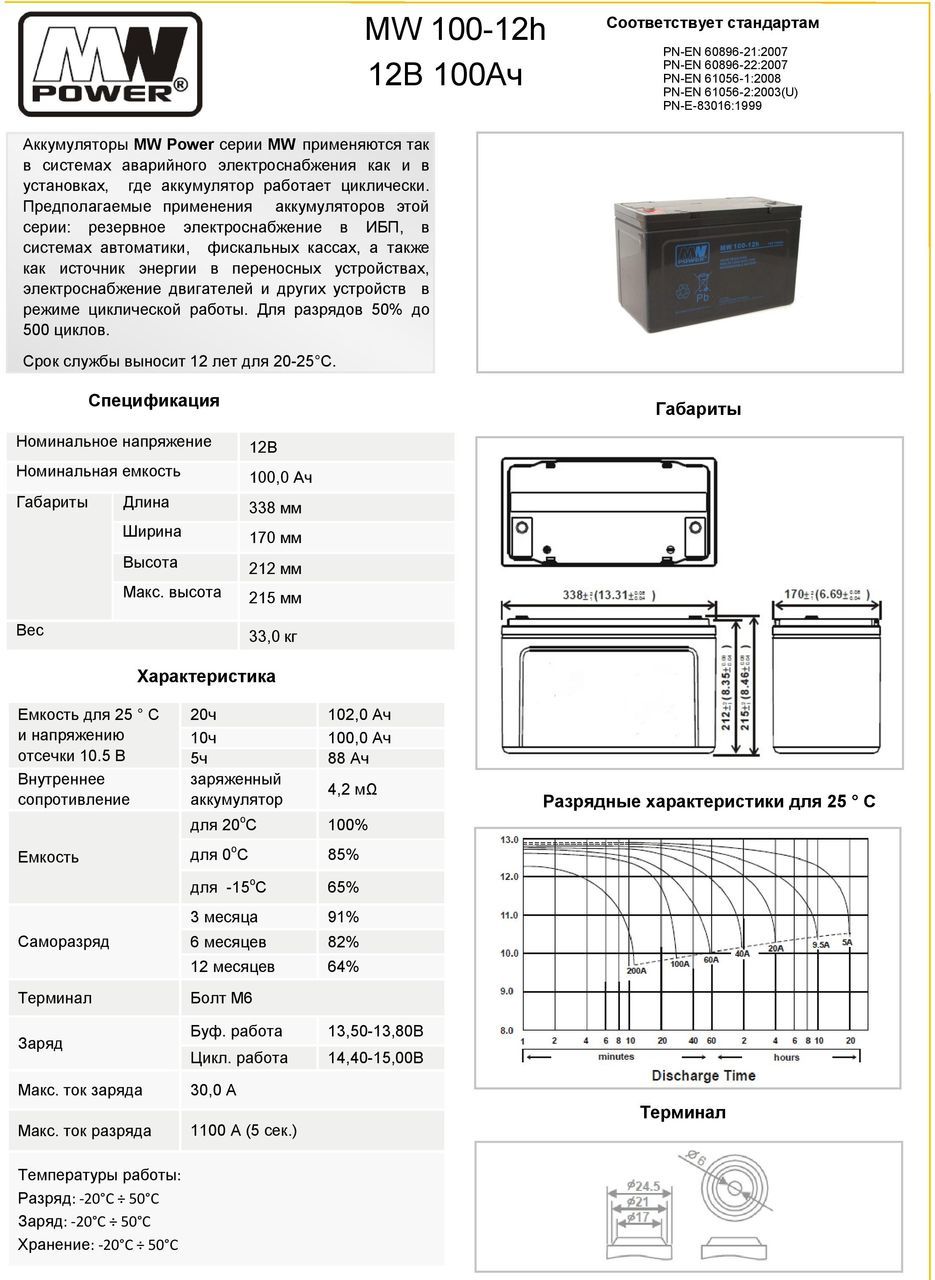

 18.mw_100-12hros-page-001 100-12 100,0 330,0 173,0 220,0 32,00 4,3

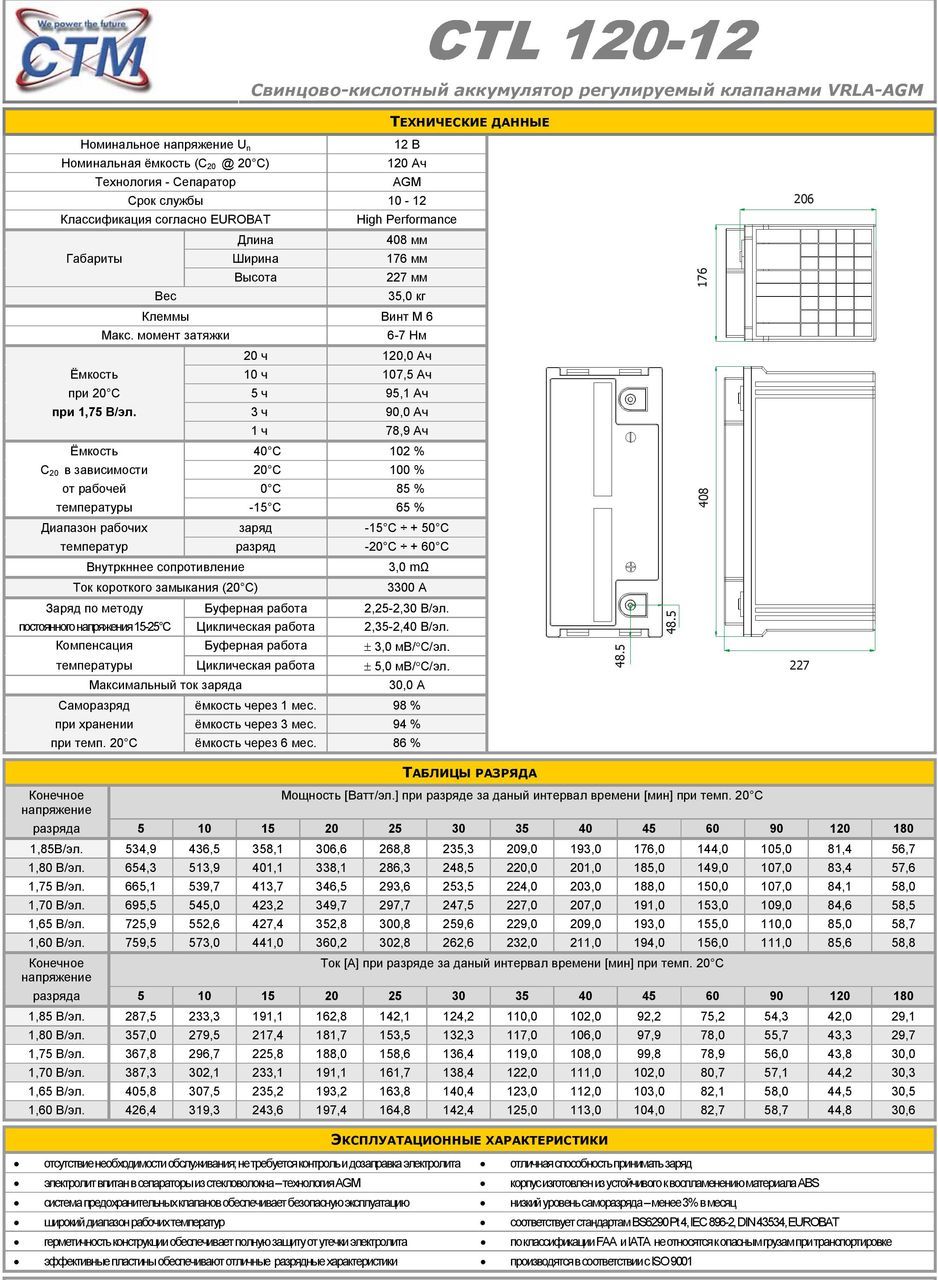

 19.ctl120-12-page-001 120-12 120,0 410,0 177,0 225,0 37,60 3,2

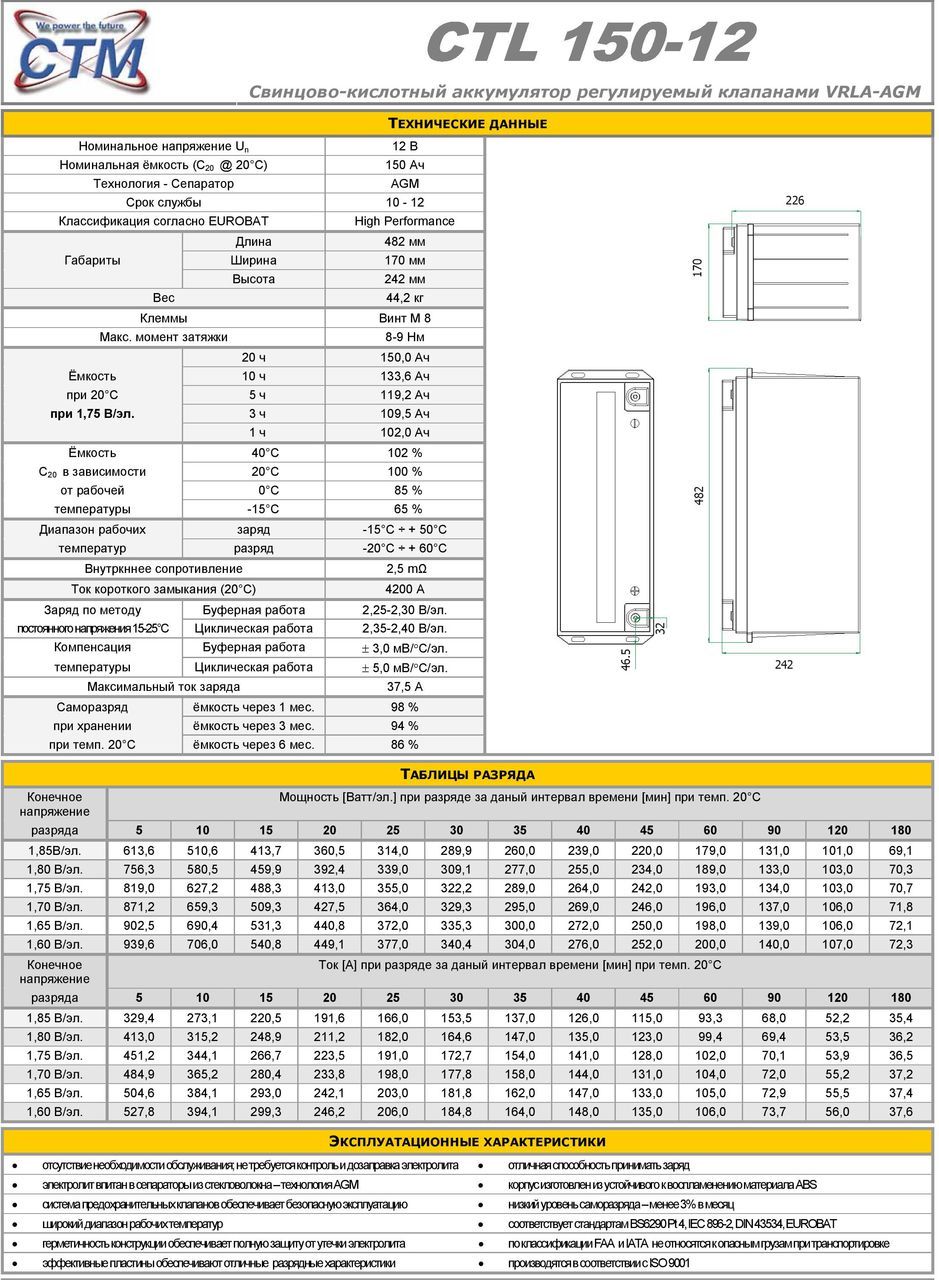

 20.ctl150-12-page-001 150-12 150,0 485,0 170,0 242,0 48,20 3,0

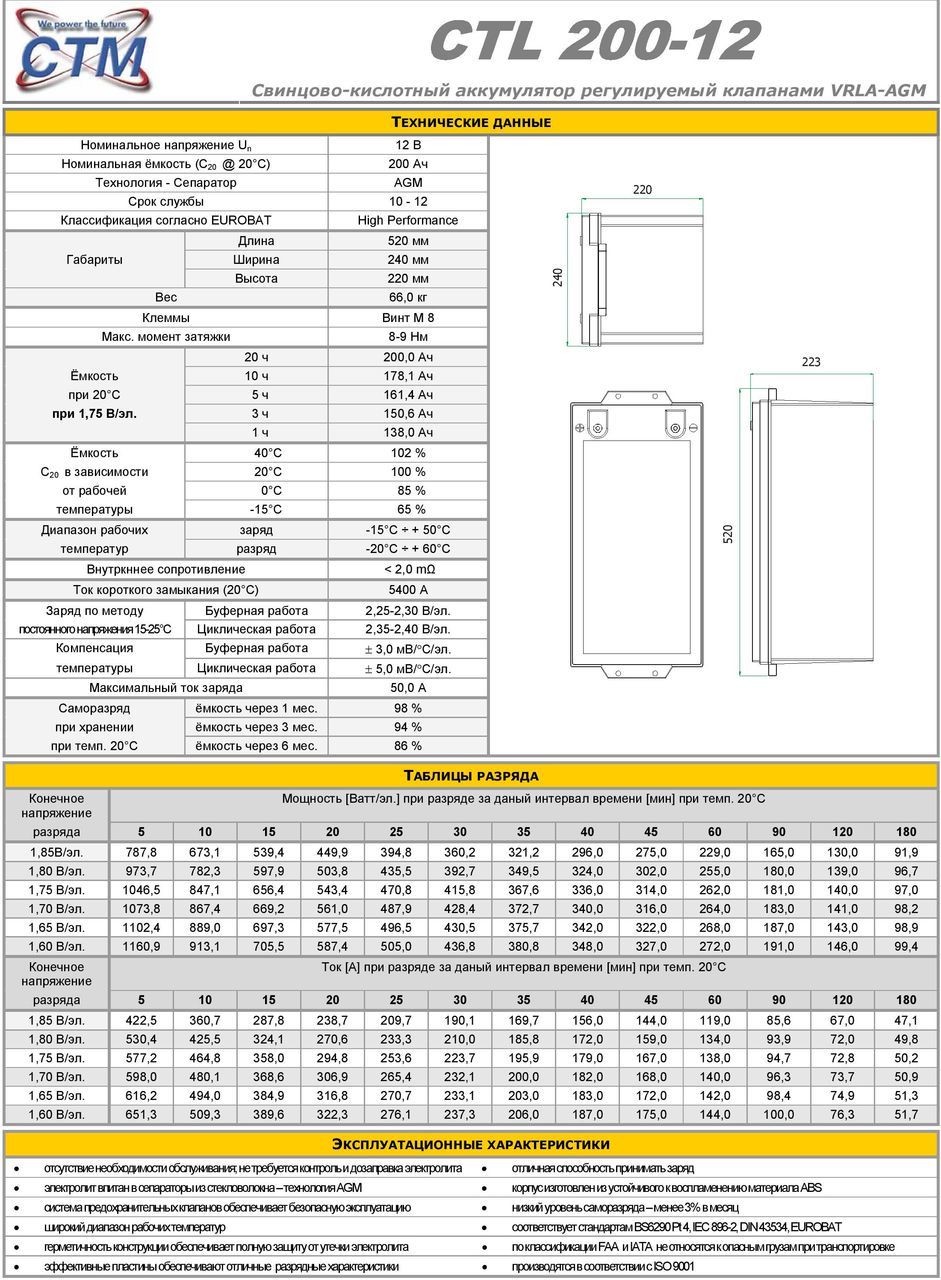

 21.ctl200-12-page-001 200-12 200,0 522,0 240,0 218,0 64,00 <2,0
